Motion is the key to the electrification revolution. As electric motors power everything from electric vehicles and aircraft to industrial equipment and consumer electronics at an accelerating rate, material selection has emerged as the critical differentiator in achieving breakthrough performance.
High-performance soft magnetic alloys, particularly Carpenter Electrification's Hiperco® iron cobalt family, are transforming motor capabilities by enabling unprecedented improvements in power density, torque, and efficiency, creating new possibilities for motor designers across industries.
Understanding the Motor Optimization Tradeoff
For decades, engineers designing electric motors have navigated an inherent challenge: optimizing for one performance factor typically meant compromising on others. The three fundamental factors are inextricably linked:
- Power Density: The amount of power a motor can deliver relative to its size and weight
- Torque: The rotational force generated by the motor
- Efficiency: How effectively the motor converts electrical energy to mechanical energy
Conventional electrical steels imposed strict limitations on this balancing act — increasing power density often required sacrificing efficiency, while maximizing torque might mean accepting a larger motor. These trade-offs have traditionally defined the boundaries of what is possible in motor design.
How Material Selection Shifts the Balance
The soft magnetic materials used in a motor's stator and rotor fundamentally determine its magnetic properties and performance envelope. By offering superior magnetic induction, permeability, and reduced core losses, advanced alloys like Hiperco® are expanding what's possible in motor design.
These materials don't just incrementally improve performance; they significantly enhance it. They fundamentally alter the optimization equation, enabling designers to achieve previously unattainable combinations of power density, torque, and efficiency. The performance improvements are substantial and measurable:
- Up to 30% higher power density
- Up to 25% increased torque as a drop-in solution
- Up to 3% improvement in motor efficiency
These gains create new possibilities across industries — from extended electric vehicle range to enhanced electric aircraft payload capacity.
The Material Science Behind High-Performance Motors
Today's dramatic motor performance improvements stem from advances in soft magnetic alloys that surpass the conventional electrical steels used for decades. While these traditional materials have been adequate for many applications, they impose inherent limitations on magnetic saturation, core losses, and permeability.
Hiperco®, a family of iron-cobalt soft magnetic alloys, breaks through these barriers with:
- Nearly 25% higher magnetic induction (saturation)
- Superior permeability for better magnetic flux
- Up to 30% lower core losses, especially at higher frequencies
- Better thermal conductivity for heat dissipation
These properties enable smaller, more powerful, and more efficient motors than ever before. The Hiperco® family includes several variations optimized for different applications — from aerospace motors to high-torque electric vehicle drives — revealing how specialized material science and manufacturing processes create today's breakthrough performance.
The Manufacturing Process: From Alloy to Motor Stack
Converting these advanced alloys into high-performance motor components requires specialized expertise. The journey from raw alloy to finished motor stack involves several critical steps:
-
Precision Melt Processing: Controlled vacuum induction melting to ensure exact alloy composition
-
Specialized Rolling: Advanced hot and cold rolling techniques to achieve desired thickness and grain structure
-
Custom Heat Treatment: Precise thermal processing to optimize magnetic properties
-
Laminations: Cutting thin strips, as thin as 0.004", into stator and rotor shapes at high tolerance, high volume, and with high yield
-
Lamination Stacking: Assembly with tight tolerances to enable reduced motor component air gaps and proper insulation to minimize stack core loss
-
Final Processing: Quality control and testing to ensure performance specifications of fully assembled stator and rotor stacks
Inadequate processing can significantly diminish Hiperco®'s performance benefits, making stack manufacturing expertise as crucial as the alloys themselves.
Optimizing for Power Density
In today's high-performance applications, from defense vehicles to eVTOLs and electric aircraft, generating more power from smaller, lighter motors is a game-changing advantage. Power density optimization enables designers to reduce weight, conserve space, and enhance system-level performance; however, it necessitates the use of specialized materials and design approaches to overcome the thermal and magnetic challenges associated with compact, high-output motors.
Related Blog: Electric Motor Solution Product Information
Material Solutions for Compact Motor Design
Power density, the ratio of power output to motor size and weight, is particularly critical in applications where space and weight are at a premium. Hiperco® alloys enable substantial improvements through:
- Higher magnetic saturation, allowing more magnetic flux in a given volume
- Reduced core losses, minimizing wasted energy
- Better thermal properties, enabling more compact designs with simplified cooling
These properties allow designers to increase power output within the same motor envelope or reduce motor size while maintaining performance, providing valuable flexibility in system design.

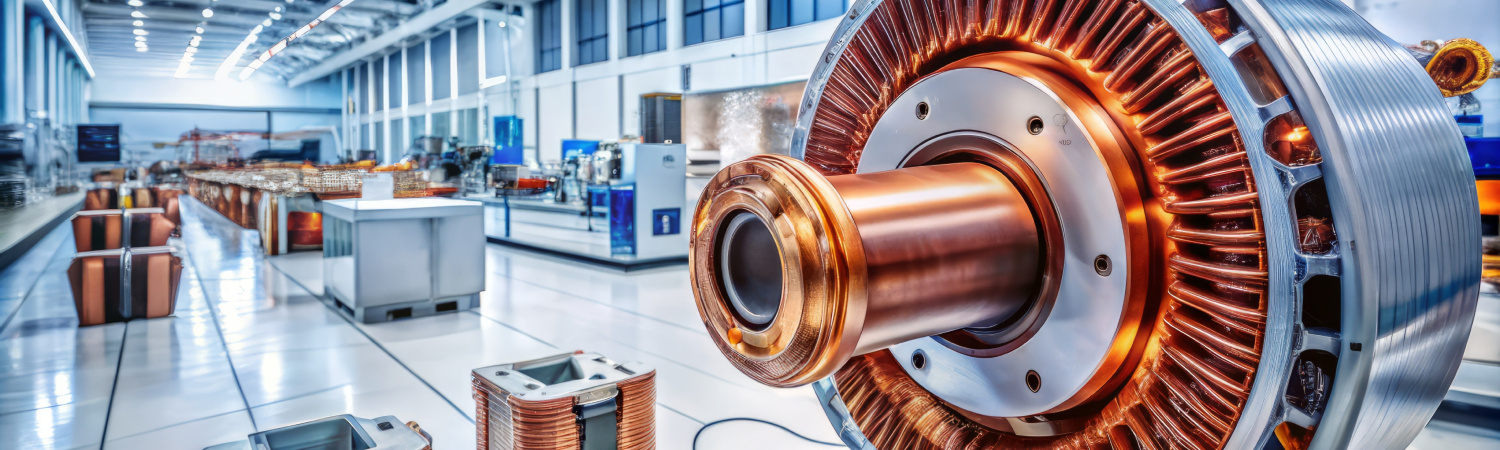

Thermal Management Considerations
As power density increases, thermal management becomes increasingly critical. The superior thermal properties of advanced soft magnetic alloys help address this challenge by:
- Generating less heat through reduced core losses
- Providing better thermal conductivity for heat dissipation
- Maintaining consistent magnetic properties across a broader temperature range
Motors using Hiperco® alloys typically run 10-20°C cooler than conventional materials, allowing for more compact designs with simplified thermal management systems.
Maximizing Torque Output
Torque, the rotational force that enables a motor to perform work, is a critical performance metric that directly impacts acceleration, load-carrying capacity, and overall system capability. Enhanced torque can transform performance in applications ranging from electric vehicles to industrial machinery.
Material Properties That Enhance Torque Generation
Torque is directly related to the magnetic field strength within the motor. The superior magnetic properties of Hiperco® alloys enhance torque generation through higher magnetic saturation that produces stronger magnetic fields, improved permeability allowing more complete magnetization, and lower losses that convert more energy into useful torque rather than waste heat.
Performance Data: Torque Improvements with Hiperco®
Real-world testing demonstrates substantial torque advantages:
- Up to 25% higher torque as a direct drop-in replacement in existing motor designs
- Improved torque density (torque per unit volume) by up to 30%
- Enhanced continuous torque capabilities due to better thermal performance
- More consistent torque delivery across operating conditions
These improvements directly translate into enhanced acceleration, climbing ability, and load-carrying capacity in electric vehicles, as well as increased thrust capabilities in electric aircraft. Applications particularly benefiting from enhanced torque include electric supercars for instant acceleration, heavy-duty vehicles requiring high starting torque, eVTOL aircraft during critical flight phases, and industrial machinery for efficient material handling.
Enhancing Motor Efficiency
As energy costs rise and battery capacity remains a limiting factor in mobile applications, motor efficiency has become increasingly critical. Even minor efficiency improvements can yield significant benefits — extending range, reducing operating costs, and enabling longer run times.
How Material Selection Affects Energy Conversion
Efficiency in electric motors refers to how effectively they convert electrical energy into mechanical output. Losses occur primarily through:
- Core losses (eddy currents and hysteresis)
- Copper losses in the windings
- Mechanical losses (friction and windage)
Advanced soft magnetic alloys like Hiperco® primarily address core losses, which can account for a significant portion of total motor losses, especially at higher frequencies.
Reducing Core Losses Through Advanced Alloys
Core losses in motor laminations occur through hysteresis losses during magnetic field reversal and eddy current losses from induced circulating currents. Hiperco® alloys reduce these losses through optimized metallurgical structure, higher resistivity, and precise control of impurities, resulting in up to 30% lower core losses compared to conventional electrical steels.
Making the Right Material Choice for Your Application
Selecting soft magnetic materials for electric motors is no longer a one-size-fits-all decision. Today's advanced alloys enable designers to precisely target the performance attributes most critical for their specific application.
For aerospace applications where weight is critical, the higher power density of Hiperco® alloys can enable significant system-level weight savings. For electric vehicles seeking to maximize range and performance, combining higher torque and improved efficiency offers compelling advantages. For industrial applications with continuous duty cycles, the reduced heat generation and extended service life can justify the investment in premium materials.
As electrification continues to transform industries worldwide, advanced soft magnetic alloys will play an increasingly vital role in enabling the next generation of high-performance electric motors, pushing the boundaries of what's possible in power density, torque, and efficiency.
